Through continuous research and development for the advancement of future agriculture, we provide a diverse range of agricultural product sorting solutions.
*The product image may differ from the actual product.

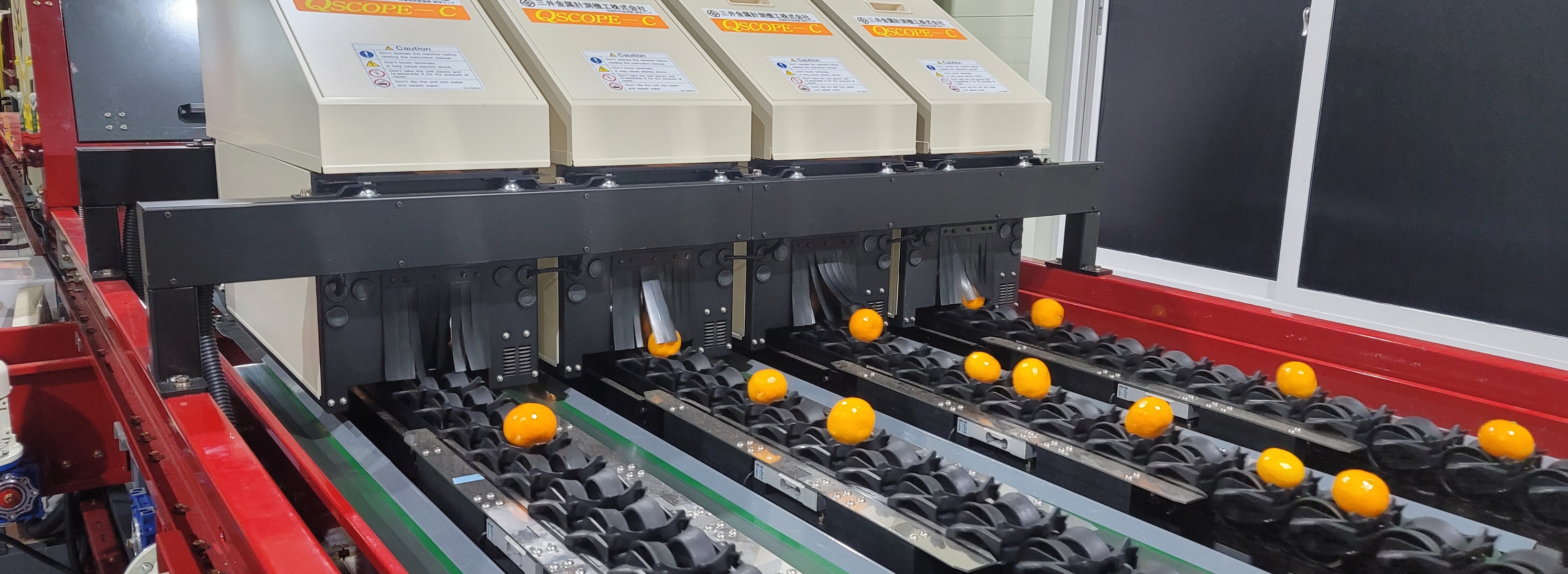

Non-Destructive System(Sugar Content · Color)
Quality Grading Steps
- - 4-step system
01
Weight Measurement
Load Cell
02
AI (Artificial Intelligence) Measurement
Camera
03
Sugar Content Measurement
Non-Destructive Sensor
04
Grade Measurement
Controller
Quality Grading Unit
- - Configuration: Camera Vision System + Non-Destructive System
- - Grade judgment and decision through integrated controller
- - Continuous upgrades supported based on purely domestic technology

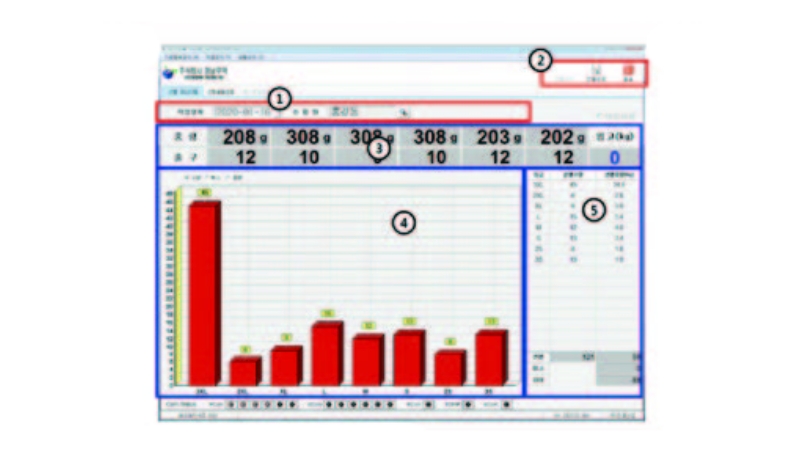

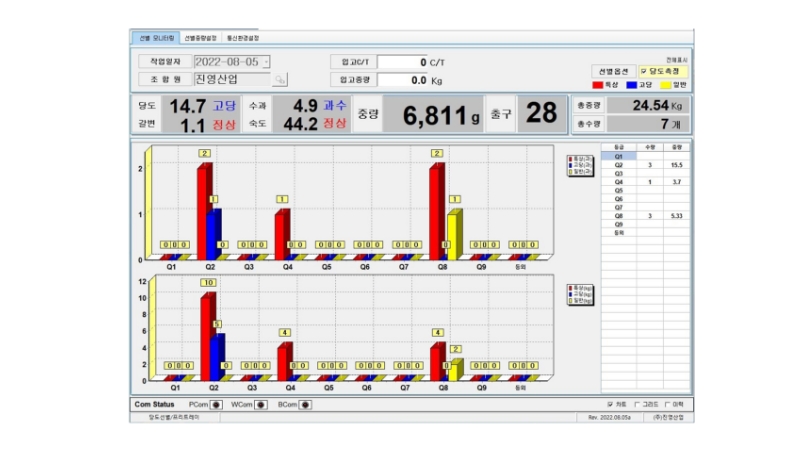

- - User-friendly interface

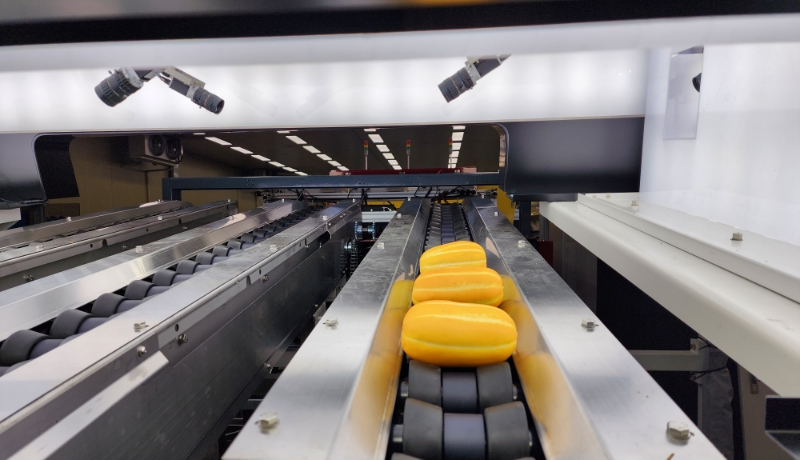

Camera Vision System
- Speed
- 7 ~ 10 items/second
- Measurement Method
-
- Multi-frame measurement by camera from above
- Size measurement regardless of fruit posture
- Real-time cavity detection through proprietary algorithm
- Measurement Items & Error Range
-
- Color: within ±4% (measured over 12 rotational frames)
- Size: within ±3% (measured over 12 rotational frames)
- Severe cavities detectable (may vary depending on raw material condition)

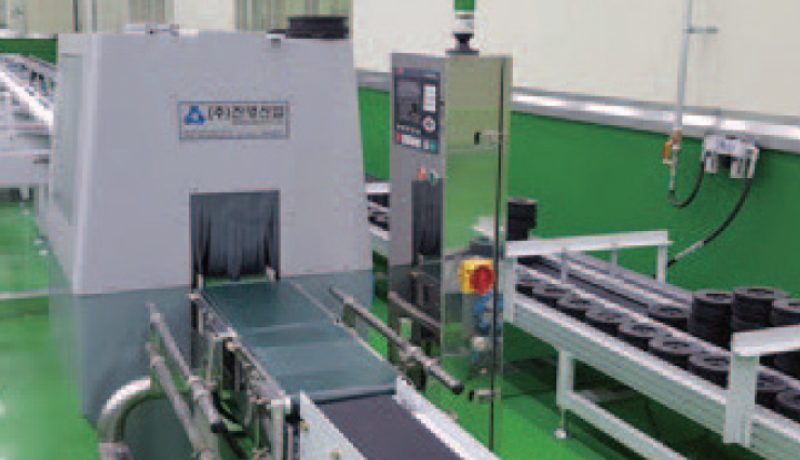

Non-Destructive System
- Measurement Method
-
- Transmission light method using visible/near-infrared region
- Uses halogen lamp with wide wavelength range
- Automatic internal quality correction based on fruit temperature and condition via internal grading controller
- Measurement Items & Error Range
-
- Color: within ±4% (measured over 12 rotational frames)
- Size: within ±3% (measured over 12 rotational frames)
- Severe cavities detectable (may vary depending on raw material condition)

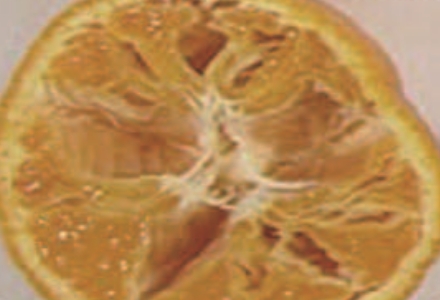

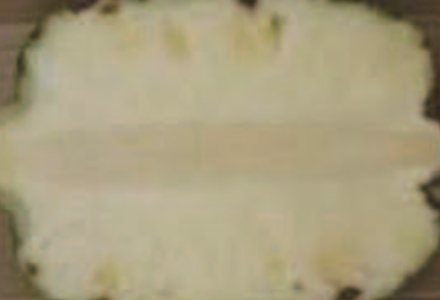

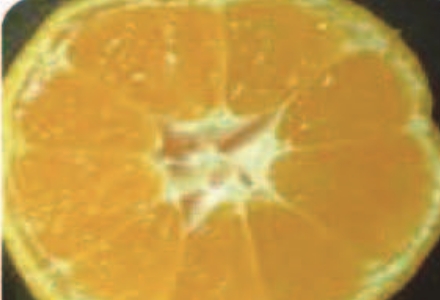

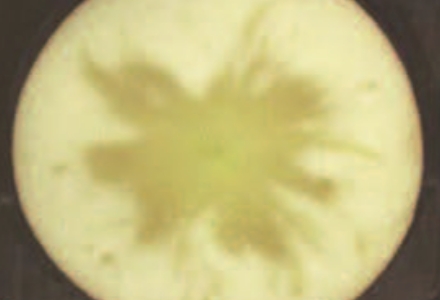

Examples of Internal Defect Detection by Non-Destructive Sensor
